How a Tiny Overflow Pocket Turns a Weld Line into a Strong Bond

1. Weld Lines Are Not Just Surface Marks — They Are Structural Cracks

In injection-molded part design, weld lines are one of the most underestimated weak points. When two melt fronts meet inside a mold cavity without enough temperature, pressure, or flow continuity, a thin unfused interface forms instead of true fusion.

On the surface it looks harmless. On the molecular level, it is a micro-crack where polymer chains never fully entangle.

2. Why Melt Fronts Fail to Weld When They Collide

When two melt fronts flow around obstacles and meet, the first contact happens near the cold mold wall. A frozen skin has already formed while only the core remains fluid. The fronts collide at nearly 180°, so their skins touch but cannot penetrate each other.

This creates a molecular boundary where chains are discontinuous and fibers are forced into weak orientations.

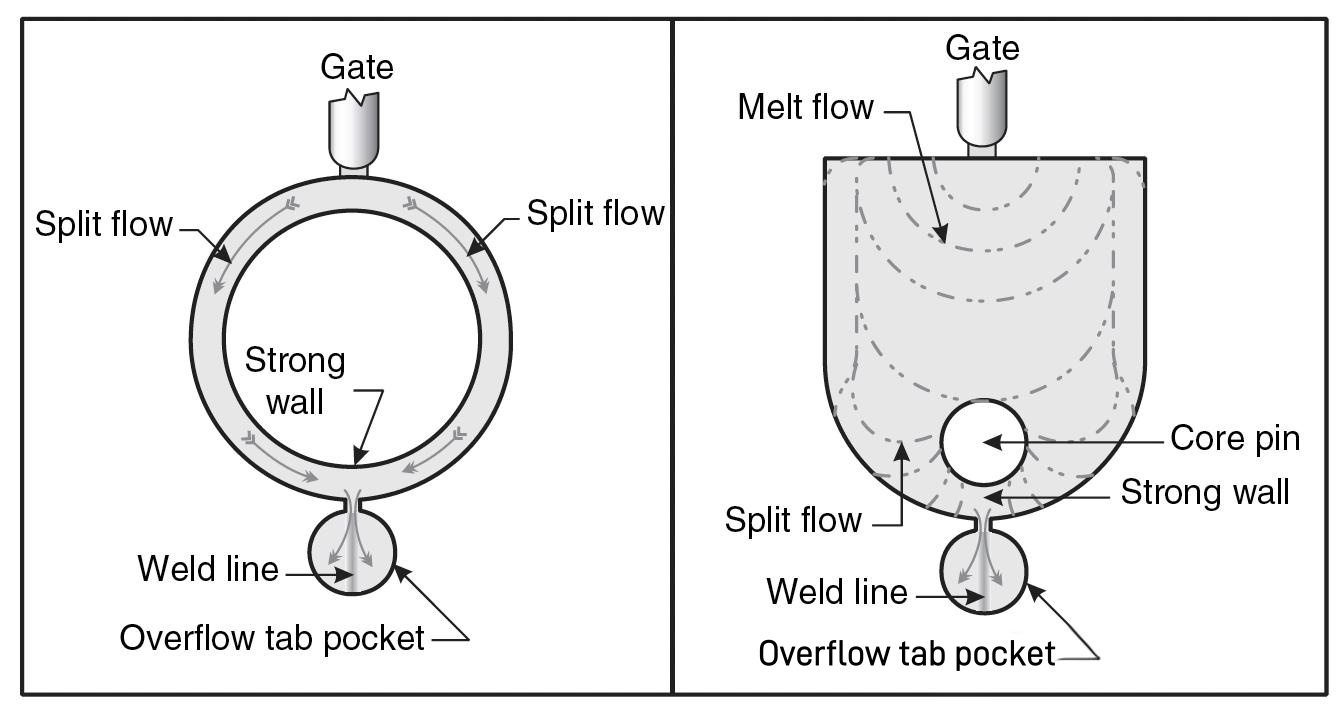

3. The Overflow Pocket Creates a Fusion Time Window

An overflow pocket prevents the flow from stopping at the weld line. Instead of freezing on impact, the melt keeps moving forward, giving the interface precious milliseconds for molecular healing.

3.1 It keeps molecular chains mobile

Continuous flow maintains pressure and temperature, allowing chains to diffuse and entangle across the interface.

3.2 It reactivates the cold surface layer

Shear heating raises the local temperature, softening the frozen skin and enabling true fusion.

3.3 It removes the head-on collision geometry

The meeting angle gradually collapses from 180° to 0°, converting two opposing flows into one continuous stream and aligning fibers across the joint.

4. From a Weld Line to a Fusion Layer

5. Design Philosophy: Let the Melt Heal Itself

Instead of trying to hide or eliminate weld lines, smart mold design gives the melt somewhere to go. The overflow pocket acts as a pressure stabilizer, thermal buffer, and molecular repair zone.
